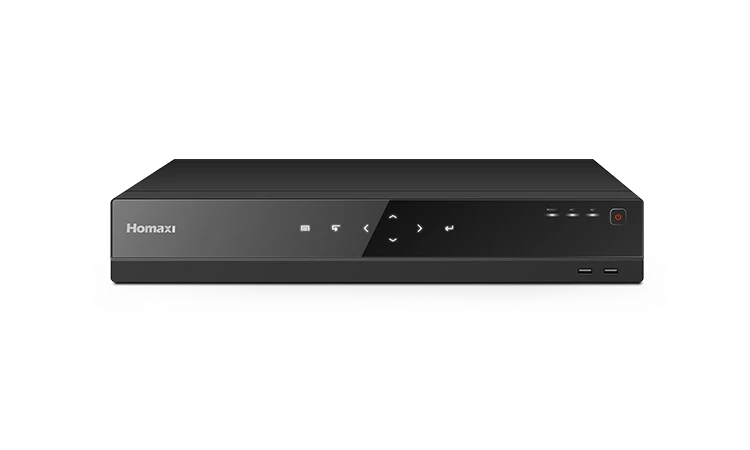

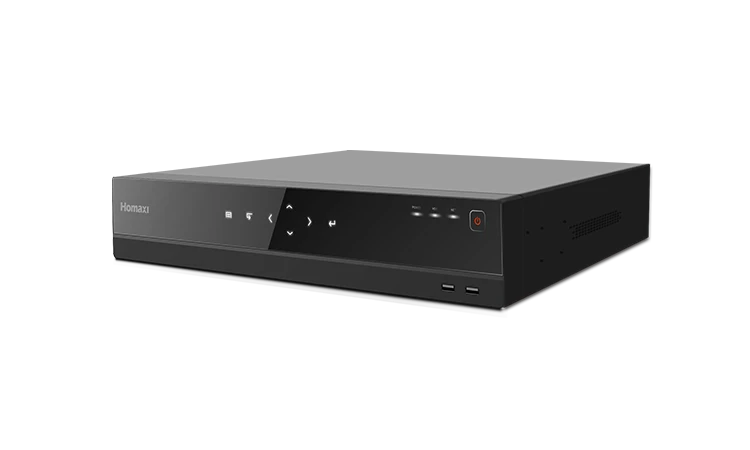

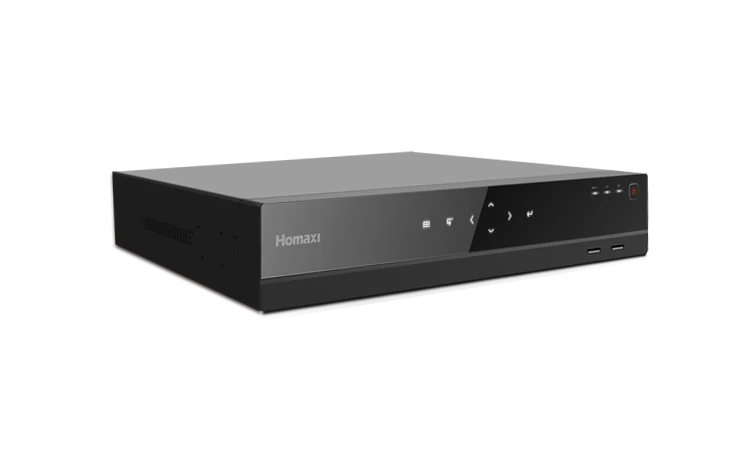

NVR604E-32P16
NVR604E-32P16

32 Channel 1.5U 4HDD 16POE Network Video Recorders

  • 32CH IP Video input,up to 12MP
  • H.265+/H.265 dual-stream video compression
  • Incoming/Outgoing Bandwidth:256Mbps/256Mbps
  • Decoding: 16CH 1080P@30fps/8CH 4MP@30fps/6CH 5MP@30fps/4CH 4K@30fps
  • Supports mainstream cameras of ONVIF and RTSP protocol
  • VGA/HDMI asynchronous video output, maximum resolution of HDMI® is 4K
  • AI by Camera:SMD,perimeter protection,face detection,etc.
  • NDAA Compliant
  • The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Specification shanjiao
Download Center shanjiao
Specification shanjiao
Specification
Download Center
Video & Audio Input
IP Video Input 32ch
Audio input 1ch, RCA (Linear, 1kΩ)
Video & Audio Output
HDMI 4K(3840×2160)/30Hz, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Audio Output 1ch, RCA (Linear, 1kΩ)
Recording
Compression H.265+/H.265/H.264+/H.264
Resolution 12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF
Bit Rate per Channel 64Kbps~10Mbps
Playback & Backup
Playback Resolution 12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF
Decoding Capability 2ch@12M 20fps
4ch@8M 30fps
6ch@5M 30fps
8ch@4M 30fps
16ch@1080P 30fps
Synchronous Playback 16ch
Playback Mode Smart Playback/Normal/Time Division/ Label/ Event
Backup Mode USB Device/Network/eSATA
Advanced Features
Smart Detection by Camera Area Intrusion, Line crossing, Region Entrance /Region Exiting, Fast Moving, Object Missing, Unattended Object, Loitering Detection, Parking Detection, Face Detection, People Gathering Detection, Blurred detection, Scene change detection, Audio exception detection, SMD, PP
Smart Playback Face detection/Line Crossing/Are Intrution/Motion Detection/Human Detection/Vehicle Detection
Cloud Storage Support
Cloud Upgrade Support
Network
Incoming Bandwidth 256Mbps
Outgoing Bandwidth 256Mbps
Ethernet 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Network Compatibility HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, Multicast, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, ONVIF
Smart Phone IOS(iPhone, iPad), Android(Phone, Pad)
Hard Disk
SATA 4 SATA interface
Capacity Up to 18TB capacity for each HDD
External Interface
POE Port 16 independent 10/100 Mbps PoE Ethernet interfaces
USB Interface Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
eSata 1 × eSATA
RS 485 2
Alarm In 16ch
Alarm Out 4ch
General
Power Supply AC 100~240V
Power Consumption ≤30W(without HDD and POE)
Working Environment 14°F ~ 131°F(-10°C ~ 55°C )
Humidity 10% to 90%
Dimension (W×D×H) 17.32" × 17.64" × 2.76", 1.5U
(440 × 448 × 70mm)
Weight 6.3KG
