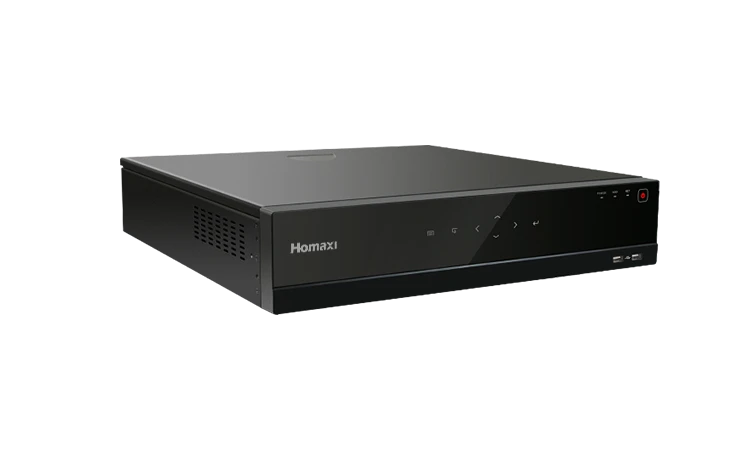

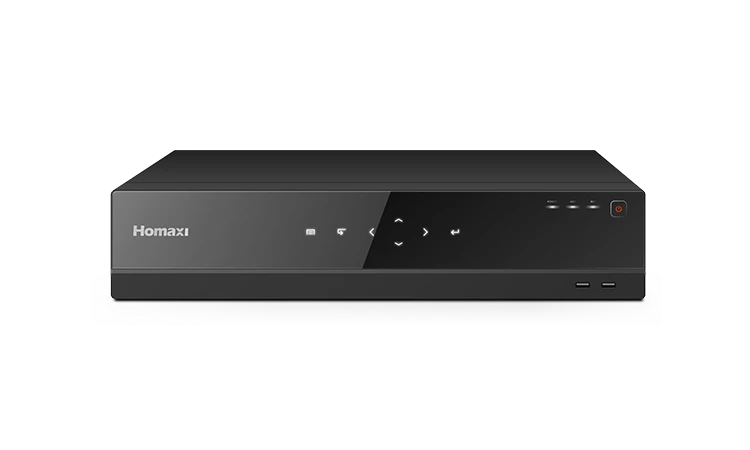

NVR808E-32
NVR808E-32
32 Channel 2U 8HDD Network Video Recorders
- 32CH IP Video input,up to 12M
- H.265+/H.265 dual-stream video compression
- Incoming/Outgoing Bandwidth: 256M/256M
- Playback: 16CH 1080P@30fps/8CH 4M@30fps/6CH 5M@30fps/4CH 4K@30fps
- Supports mainstream cameras of ONVIF and RTSP protocol
- HDMI 1/HDMI 2 asynchronous outputs, maximum resolution of HDMI® is 4K
- AI by Camera: SMD, perimeter protection, face detection, etc.
- NDAA Compliant
- The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Specification
Download
| Video & Audio Input | ||
| IP Video Input | 32ch | |
| Audio input | 1ch, RCA | |
| Video & Audio Output | ||
| HDMI | HDMI 1: 4K(3840×2160)/30Hz, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz HDMI 2: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
|
| VGA | 1920×1080/60Hz,1280×1024/60Hz, 1280×720/60Hz | |
| Audio Output | 2ch, RCA | |
| Recording | ||
| Compression | H.265+/H.265/H.264+/H.264 | |
| Resolution | 12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF | |
| Playback & Backup | ||
| Playback Resolution | 12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF | |
| Decoding Capability | 2ch@12M 20fps 4ch@8M 30fps 6ch@5M 30fps 8ch@4M 30fps 16ch@1080P 30fps |
|
| Synchronous Playback | 16ch | |
| Playback Mode | Smart Playback/Normal/Time Division/Label/Event/Picture Playback | |
| Backup Mode | USB Device/Network/eSATA | |
| Advanced Features | ||
| Smart Detection by Camera | Area Intrusion, Line crossing, Region Entrance /Region Exiting, Fast Moving, Object Missing, Unattended Object, Loitering Detection, Parking Detection, Face Detection, People Gathering Detection, Blurred detection, Scene change detection, Audio exception detection, SMD, PP | |
| Smart Playback | Face detection/Line Crossing/Are Intrution/Motion Detection/Human Detection/Vehicle Detection | |
| Cloud Storage | Support | |
| Cloud Upgrade | Support | |
| Network | ||
| Incoming Bandwidth | 256Mbps | |
| Outgoing Bandwidth | 256Mbps | |
| Ethernet | 2 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface | |
| Network Compatibility | HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, Multicast, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, ONVIF | |
| Smart Phone | IOS(iPhone, iPad), Android(Phone, Pad) | |
| Hard Disk | ||
| SATA | 8 SATA interface | |
| Capacity | Up to 18TB capacity for each HDD | |
| External Interface | ||
| USB Interface | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
|
| eSata | 1 × eSATA | |
| RS 485 | 2 | |
| Alarm In | 16ch | |
| Alarm Out | 4ch | |
| General | ||
| Power Supply | AC 100~240V | |
| Power Consumption | ≤30W(without HDD) | |
| Working Environment | 14°F ~ 131°F(-10°C ~ 55°C ) Humidity 10% to 90% |
|
| Dimension (W×D×H) | 17.32" × 17.80" × 3.54", 2U (440 × 452 × 90mm) |
|
| Weight | 7.9kg | |
