IPC8TF4R4-I2-TPMC
IPC8TF4R4-I2-TPMC

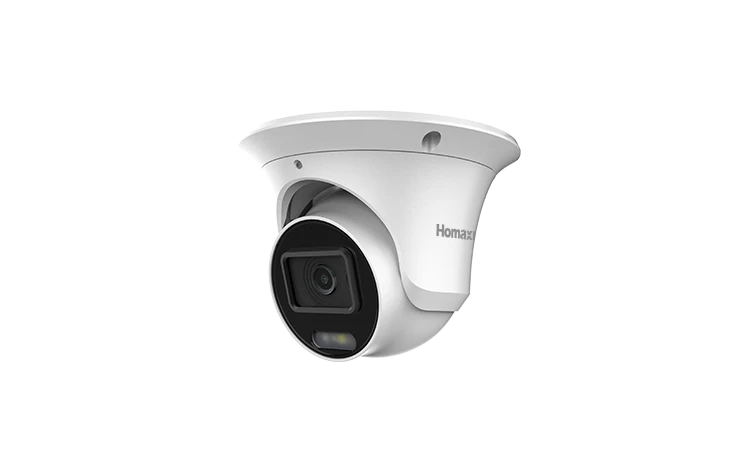

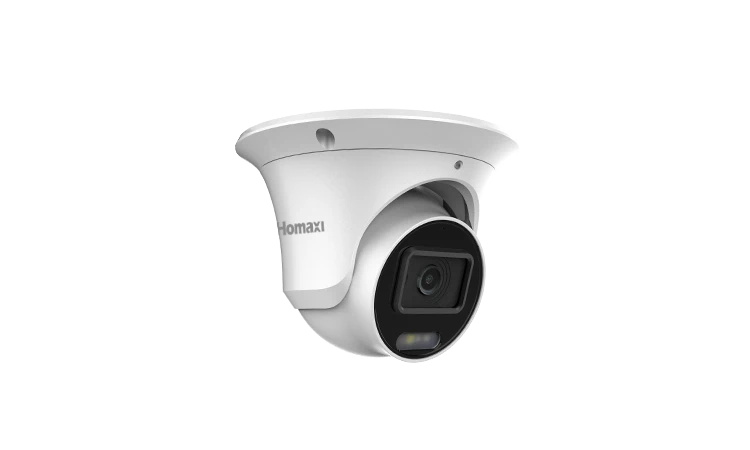

4MP ColorView Fixed Turret Network Camera

  • High quality imaging with 4MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 130 dB WDR technology
  • 24/7 colorful imaging
  • Water and dust resistant (IP67)
  • Built-in microphone, audio and alarm interface available
  • NDAA Compliant
Specification shanjiao
Download Center shanjiao
Related Accessories shanjiao
Specification shanjiao
Specification
Download Center
Related Accessories
Camera
Image Sensor 1/1.8" Progressive scan CMOS Sensor
Min. Illumination 0.0005 Lux(Color), 0 Lux with Light
Lens Type&Focal Length Fixed focal lens, 2.8mm@F1.0
FOV horizontal FOV:112°, vertical FOV:60°, diagonal FOV:131°
LED 2pcs Warm LED
Warm light Range 98ft(30m )
Shutter Time Auto/Manual, 1/3~1/100000s
Day/Night 24/7 color imaging
Wide Dynamic Range 130dB
Digital noise reduction 2D/3D DNR
Compression Standard
Video Compression H.264/H.264+/H.265/H.265+/MJPEG
H.264 Codec profile Base/Main/High profile
H.265 Codec profile Main profile
Video Bit Rate 11 Kbps~10 Mbps
Triple Streams Support
Audio Compression G.711A/G.711U
Audio Bit Rate 64 Kbps
Max. Image Resolution 4M(2688 × 1520)
Frame Rate 50Hz: 25fps 4M(2688 × 1520)
25fps 4M(2560 × 1440)
25fps 1080P(1920 × 1080)
60Hz: 30fps 4M(2688 × 1520)
30fps 4M(2560 × 1440)
30fps 1080P(1920 × 1080)
Sub Stream 50Hz: 25fps 720P(1280 × 720)
25fps D1(704 × 576), 25fps CIF(352 × 288)
60Hz: 30fps 720P(1280 × 720)
30fps D1(704 × 480), 30fps CIF(352 × 240)
Third Stream 50Hz: 25fps CIF(352 × 288)
60Hz: 30fps CIF(352 × 240)
Image Setting Brightness/Contrast/Saturation/Hue/Sharpness
BLC Support
HLC Support
ROI Support
Defog Support
Rotate Support
Network
Network Storage NAS (NFS, SMB/CIFS), ANR
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), Video Shlter
Face Detection Support
Perimeter Protection Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
Scene change detection
System compatibility Onvif(Profile S, Profile G, T), SDK
Security Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Web Browsers Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Mobile Surveillance iPhone, Android devices
Interface
Communication interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Micro SD, up to 256GB
Audio I/O 1/1
Built-in Mic Support
Alarm I/O 1/1
Reset button Support
General
Operating Conditions -40°F ~ 140°F (-40°C ~ 60°C)
Humidity 95% or less (non-condensing)
Power Supply DC12V ± 25%
POE Supply PoE (802.3af)
Power Consumption MAX.7W
Weather Proof IP67
Vandalproof N/A
Dimensions Φ5.51'' × 4.12'' (140 × 104.7 mm)
Weight 870g
