IPC6TV2R8-I2-TPMLZ
IPC6TV2R8-I2-TPMLZ

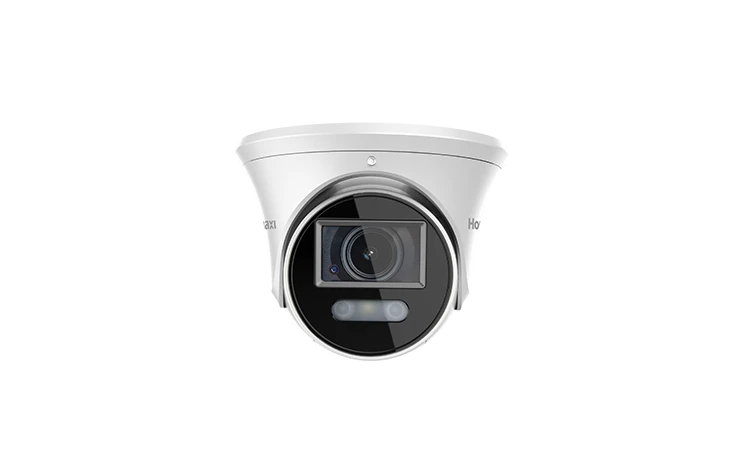

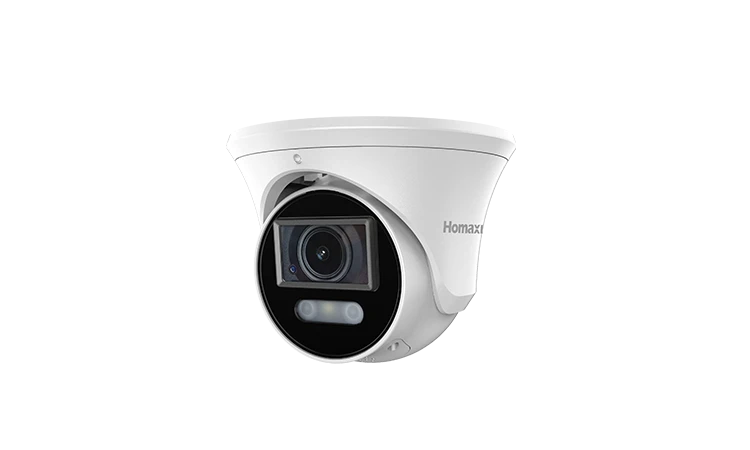

8MP iQSense Motorized Turret Network Camera
- High quality imaging with 8MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Built-in microphone, audio and alarm interface available
- NDAA Compliant
Specification
Download
Accessories
| Camera | |
| Image Sensor | 1/2.8" Progressive scan CMOS Sensor |
| Min. Illumination | 0.006 Lux(Color), 0 Lux(IR on) |
| Illumination Distance | 40m (IR light) |
| Strobe Light | Support |
| Smart IR | Support |
| Pan/Tilt/Rotation Range | Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotation: 0° ~ 360° |
| Lens | |
| Focal Length | 2.7- 13.5 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 108° ~ 34°, Vertical FOV: 58° ~ 19°, Diagonal FOV: 130° ~ 39° |
| Lens Mount | Φ 14 |
| DORI | |
| DORI | 2.7- 13.5 mm, D: 93 m to 274 m, O: 36.3 m to 108 . 1 m, R: 18 .2 m to 54 .4 m, I: 9. 1 m to 27.2 m |
| Compression Standard | |
| Video Compression | H.264/H.264+/H.265/H.265+/MJPEG |
| H.264 Codec profile | Base/Main/High profile |
| H.265 Codec profile | Main profile |
| Video Bit Rate | 11 Kbps~16 Mbps |
| Triple Streams | Support |
| Audio Compression | G.711A/G.711U |
| Audio Bit Rate | 64 Kbps |
| Image | |
| Max. Image Resolution | 8MP(3840 × 2160) |
| Frame Rate | 50Hz: 25fps 8MP(3840 × 2160) 25fps 6M(3200 x 1800), 25fps 5M(3072 x 1728) 25fps 4M(2560 x 1440), 25fps 2M(1920 x 1080) 60Hz: 30fps 8MP(3840 × 2160) 30fps 6M(3200 x 1800), 30fps 5M(3072 x 1728) 30fps 4M(2560 x 1440), 30fps 2M(1920 x 1080) |
| Sub Stream | 50Hz: 25fps 720P(1280 × 720) 25fps D1(704 × 576), 25fps CIF(352 × 288) 60Hz: 30fps 720P(1280 × 720) 30fps D1(704 × 480), 30fps CIF(352 × 240) |
| Third Stream | 50Hz: 25fps CIF(352 × 288) 60Hz: 30fps CIF(352 × 240) |
| Image Setting | Brightness/Contrast/Saturation/Hue/Sharpness |
| Shutter Time | Auto/Manual, 1/3~ 1/100000s |
| Day/Night | IR cut filter |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | 2D/3D DNR |
| BLC | Support |
| HLC | Support |
| ROI | Support |
| Defog | Support |
| Rotate | Support |
| Smart Feature | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle) ),video shelter |
| Smart Event | Line crossing detection, area intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle) ) Scene change detection |
| Face Detection | Support |
| Network | |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
| Perimeter Protection | Line crossing detection, Area intrusion, Region Entrance, Region Exiting(support alarm triggering by specified target types (human and vehicle)) Scene Change Detection |
| System compatibility | Onvif(Profile S, Profile G, T), SDK |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| User | Up to 40 users |
| Web Browsers | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
| Mobile Surveillance | IOS, Android |
| Interface | |
| Communication interface | 1 RJ45 10M/100M Ethernet Port |
| On-board storage | Up to 256GB |
| MIC | Support |
| Speaker | N/A |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Reset button | Support |
| General | |
| Operating Conditions | -40°F ~ 140°F(-40°C ~ 60°C ) Humidity 95% or less (non-condensing) |
| Power Supply | DC12V ± 25% |
| POE | PoE (802.3af) |
| Power Consumption | MAX.11W |
| Protection Level | IP67 |
| Material | Metal |
| Dimensions | Φ5.68'' × 4.47'' (144.5 × 113.5 mm) |
| Gross Weight | 2.43 lb (1100 g) |
