IPC4BF2R4-I1-TML
IPC4BF2R4-I1-TML

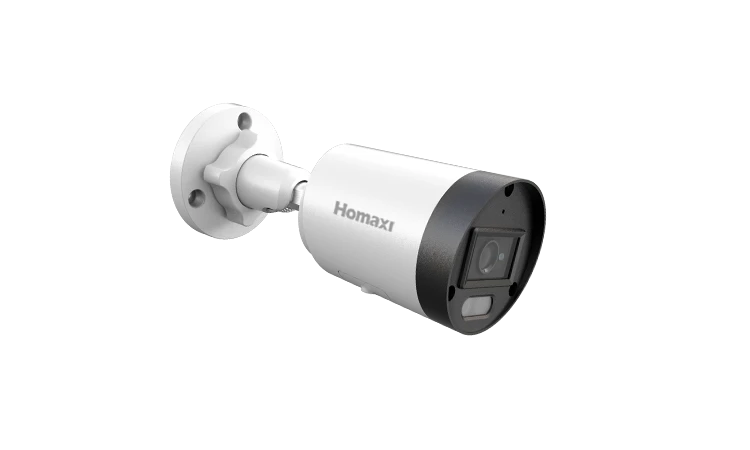

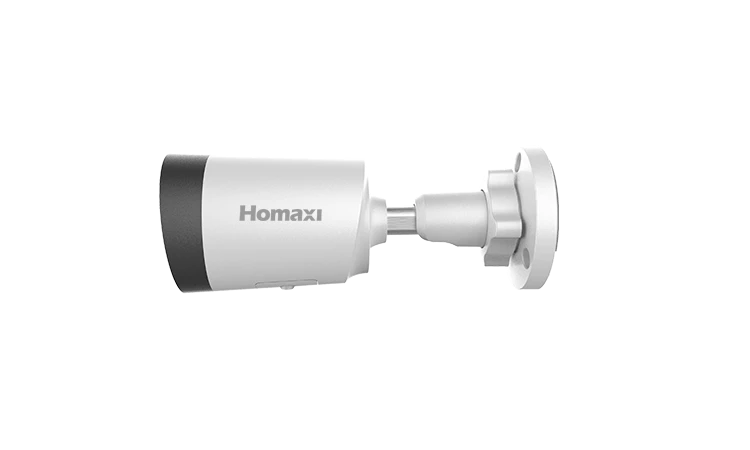

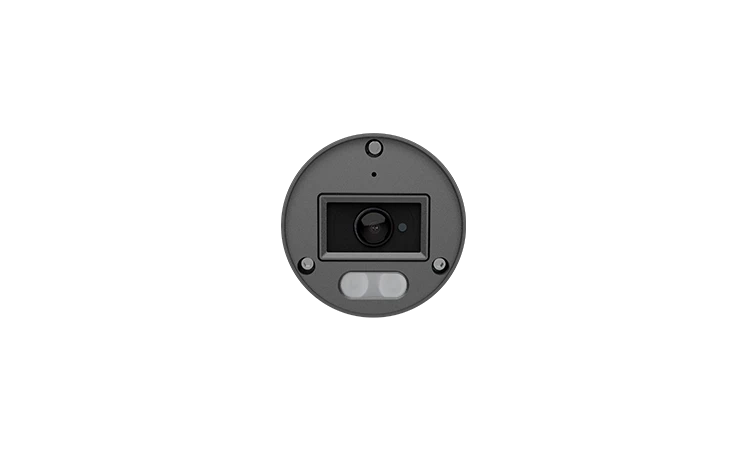

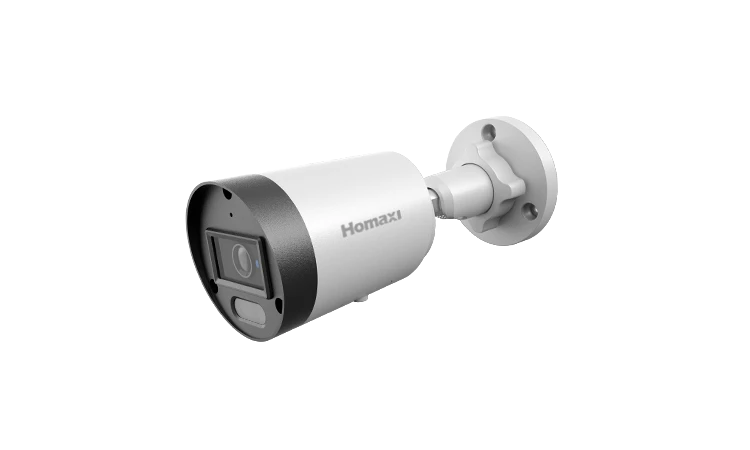

4MP Starlight Fixed Bullet Network Camera

  • High quality imaging with 4MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Water and dust resistant (IP67)
  • Built-in microphone for real-time audio security
Specification shanjiao
Download Center shanjiao
Related Accessories shanjiao
Specification shanjiao
Specification
Download Center
Related Accessories
Camera
Image Sensor 1/2.7" Progressive scan CMOS Sensor
Min. Illumination 0.006 Lux(Color), 0 Lux(with light)
Illuminator Number 2(IR light)
Illumination Distance 131ft(40m)
StrobeLight Support
Smart Light Support
Pan/Tilt/Rotation Range Pan: 0°~360°
Tilt: 0°~90°
Rotation: 0°~360°
Lens
Focal Length 2.8mm
Aperture F1.6
FOV 2.8mm@F1.6 horizontal FOV: 111° , vertical FOV: 60°diagonal FOV: 132°
Lens Mount M12
Compression Standard
Video Compression H.265/H.265+/H.264/H.264+/MJPEG
H.264 Codec profile Base/Main/High profile
H.265 Codec profile Main profile
Video Bit Rate 11 Kbps~8 Mbps
Triple Streams N/A
Audio Compression G.711A, G711U
Audio Bit Rate 64 Kbps
Max. Image Resolution 4M(2688 × 1520)
Main Stream 50Hz: 20fps 4M(2688 × 1520)
25fps 4M(2560 × 1440)
25fps 1080P(1920 × 1080)
60Hz:20fps 4M(2688 × 1520)
30fps 4M(2560 × 1440)
30fps 1080P(1920 × 1080)
Sub Stream 50Hz:25fps 720P(1280 × 720)
25fps D1(704 × 576),25fps CIF(352 × 288)
60Hz:30fps 720P(1280 × 720)
30fps D1(704 × 480),30fps CIF(352 × 240)
Third Stream N/A
Image Setting Brightness/Contrast/Saturation/Hue/Sharpness
Shutter Time Auto/Manual, 1/3~1/100000s
Day/Night IR cut filter with auto switch
Wide Dynamic Range 120dB
Digital noise reduction 2D/3D DNR
BLC Support
HLC Support
ROI Support
Rotate Support
Smart Feature
Basic Event Motion detection (human and vehicle targets classification),Video Shelter
Smart Event Line Crossing , Area Intrusion (support alarm triggering by specified target types (human and vehicle))
Face Detection N/A
Network
Network Storage NAS (NFS, SMB/CIFS), ANR
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P
System compatibility Onvif(Profile S, Profile G, T), SDK
Security Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Web Browsers Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
User Up to 10 users
Mobile Surveillance iOS, Android
Interface
Communication interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board storage up to 256GB
MIC Support
Speaker N/A
Audio I/O N/A
Alarm I/O N/A
Reset button Support
General
Operating Conditions -40°F ~ 140°F (-40°C ~ 60°C)
Humidity 95% or less (non-condensing)
Power Supply DC12V ± 25%
POE PoE (802.3af)
Power Consumption MAX.5.5W
Protection Level IP67
Material Metal
Dimensions Φ2.63'' × 6.78'' (68 × 172.3mm)
Gross Weight 500g
