IPC4BF2R8-I1-TML

IPC4BF2R8-I1-TML

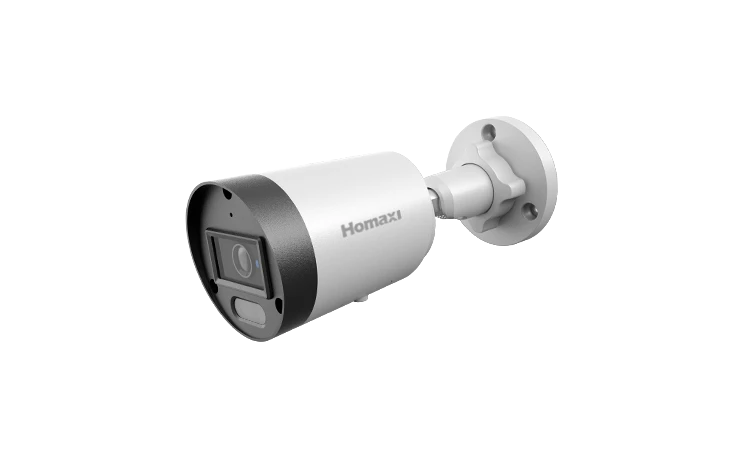

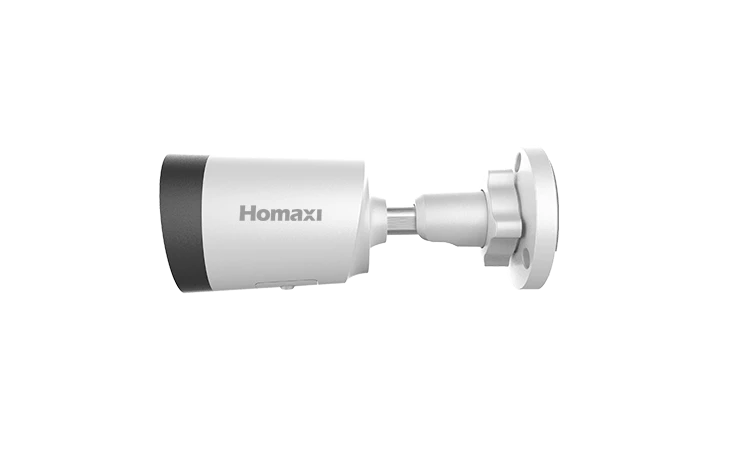

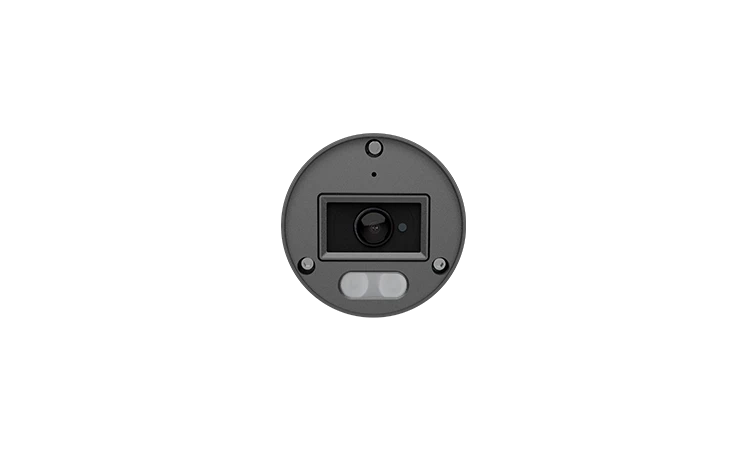

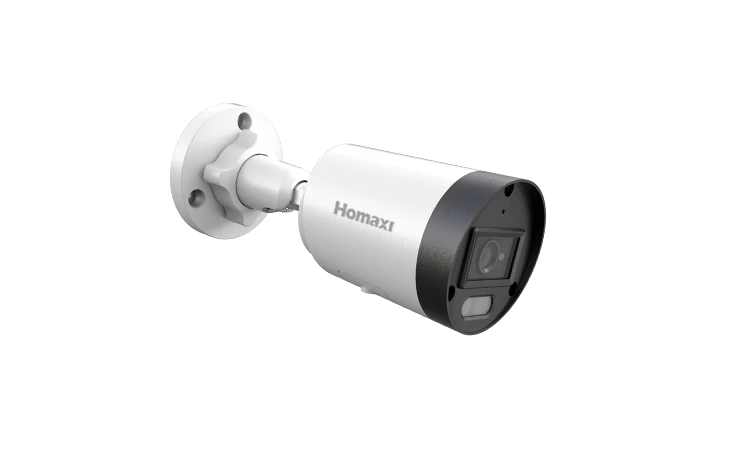

8MP Starlight Fixed Bullet Network Camera
  • High quality imaging with 8MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Water and dust resistant (IP67)
  • Built-in microphone for real-time audio security
  • NDAA Compliant
Specification shanjiao
Download shanjiao
Accessories shanjiao
Camera
Image Sensor 1/2.8" Progressive scan CMOS Sensor
Min. Illumination 0.006 Lux(Color), 0 Lux(with light)
Illumination Distance 131ft(40m)
StrobeLight Support
Smart Light Support
Pan/Tilt/Rotation Range Pan: 0°~360°
Tilt: 0°~90°
Rotation: 0°~360°
Lens
Focal Length 2.8mm
Aperture F1.6
FOV 2.8mm@F1.6 horizontal FOV: 106° , vertical FOV: 58°diagonal FOV: 125°
Lens Mount M12
Compression Standard
Video Compression H.265/H.265+/H.264/H.264+/MJPEG
H.264 Codec profile Base/Main/High profile
H.265 Codec profile Main profile
Video Bit Rate 11 Kbps~11 Mbps
Triple Streams N/A
Audio Compression G.711A, G.711U
Audio Bit Rate 64 Kbps
Max. Image Resolution 8MP(3840 × 2160)
Main Stream 50Hz:20fps 8MP(3840 × 2160),
20fps 6MP(3200 × 1800), 25fps 5MP(3072 × 1728)
25fps 4MP(2560 × 1440), 25fps 1080P(1920 × 1080)

60Hz:20fps 8MP(3840 × 2160),
20fps 6MP(3200 × 1800), 30fps 5MP(3072 × 1728)
30fps 4MP(2560 × 1440), 30fps 1080P(1920 × 1080)
Sub Stream 50Hz:25fps 720P(1280 × 720)
25fps D1(704 × 576), 25fps CIF(352 × 288)
60Hz:30fps 720P(1280 × 720)
30fps D1(704 × 480), 30fps CIF(352 × 240)
Third Stream N/A
Image Setting Brightness/Contrast/Saturation/Hue/Sharpness
Shutter Time Auto/Manual, 1/3~1/100000s
Day/Night IR cut filter
Wide Dynamic Range 120dB
Digital noise reduction 2D/3D DNR
BLC Support
HLC Support
ROI Support
Rotate Support
Smart Feature
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), Video Shelter
Smart Event Line crossing detection, intrusion detection(human and vehicle targets classification)
Face Detection N/A
Network
Network Storage NAS (NFS, SMB/CIFS), ANR
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P
System compatibility Onvif(Profile S, Profile G, T), SDK
Security Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
User Up to 10 users
Web Browsers Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Mobile Surveillance iPhone, Android devices
Interface
Communication interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board storage up to 256GB
MIC Support
Speaker N/A
Audio I/O N/A
Alarm I/O N/A
Reset button Support
General
Operating Conditions -40°F ~ 140°F (-40°C ~ 60°C)
Humidity 95% or less (non-condensing)
Power Supply DC12V ± 25%
POE PoE (802.3af)
Power Consumption MAX.7.5W
Protection Level IP67
Material Metal
Dimensions Φ2.63'' × 6.93'' (68 × 176.2 mm)
Gross Weight 500g
